Material

Materials-100+ materials can be freely selected

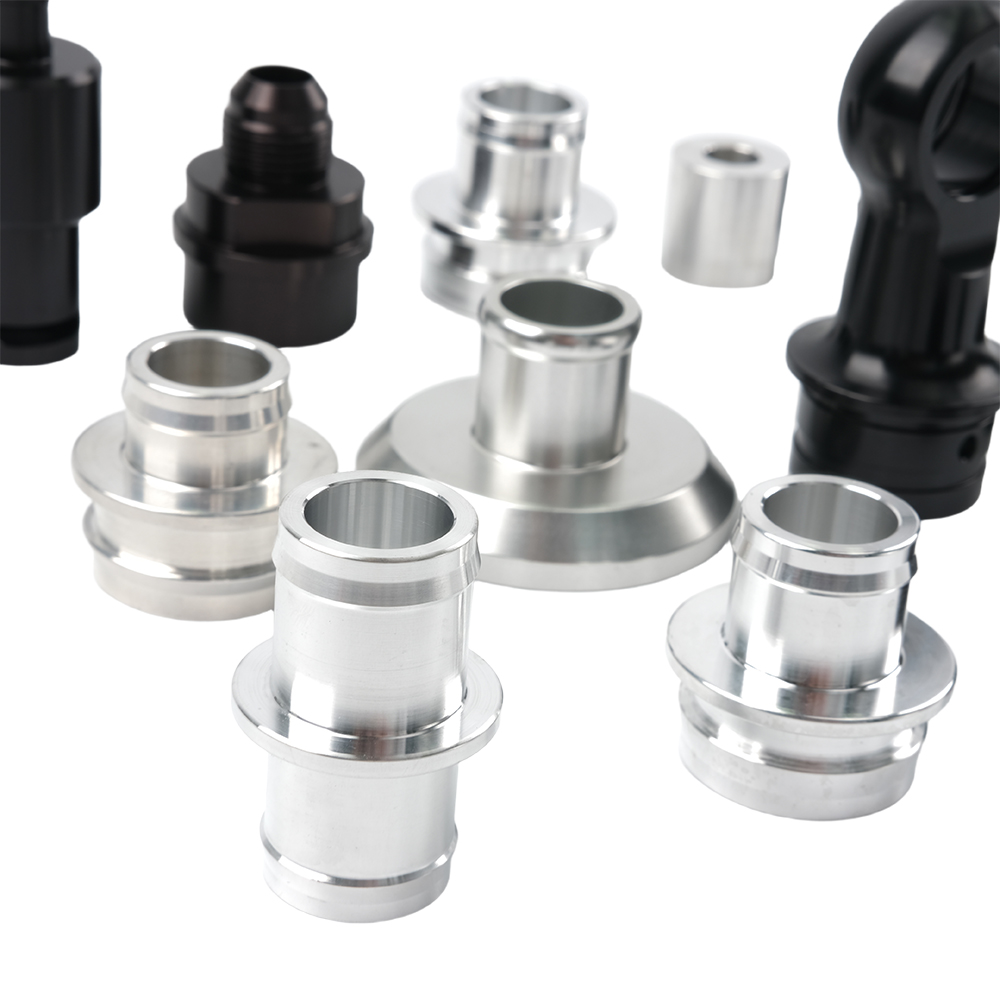

Comparison Of Common Aluminum Alloys

Aluminum Alloy Grade

Ultimate Tensile Strength (MPa)

Yield Strength (MPa)

Elongation at Break (%)

Hardness (Brinell)

Features

Common Applications

6061

276-310

240-270

12-25

95-120

High strength, good corrosion resistance

Structural components, automotive parts

7075

570-700

480-520

8-12

150-200

High strength, lightweight

Aerospace, bicycle frames

5052

210-260

160-215

10-20

60-75

Excellent corrosion resistance

Sheet metal fabrication, marine components

2024

400-490

300-365

10-20

120-140

High strength-to-weight ratio

Aircraft structures, rivets

6063

145-186

90-160

12-30

60-75

Good extrudability, corrosion resistance

Architectural profiles, window frames

5083

290-350

210-260

10-25

75-85

Excellent weldability, high strength

Marine applications, pressure vessels

3003

110-170

50-145

20-30

40-50

Good formability, weldability

Food containers, cooking utensils

1100

90-130

35-120

5-12

22-34

Excellent corrosion resistance

Chemical equipment, heat exchangers

2011

320-415

275-390

10-15

90-120

Excellent machinability, good strength

Machined parts, fasteners

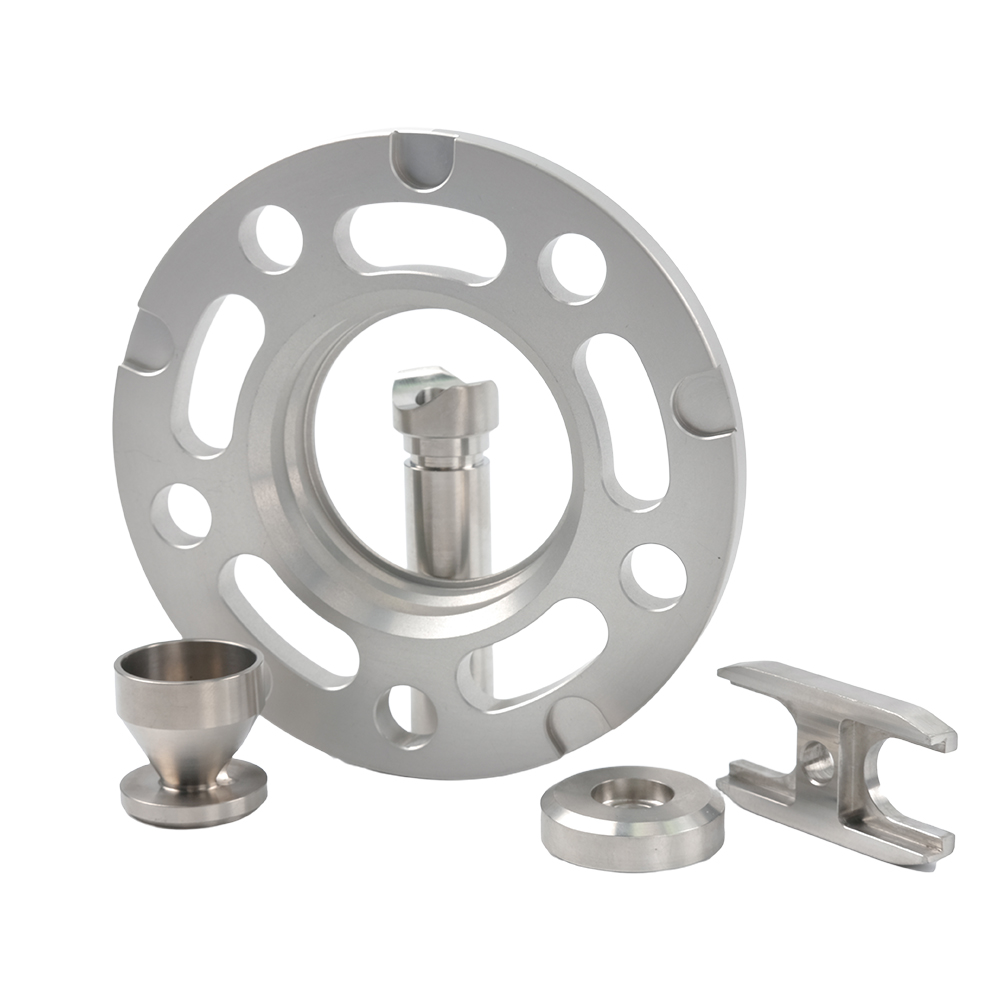

Aluminum

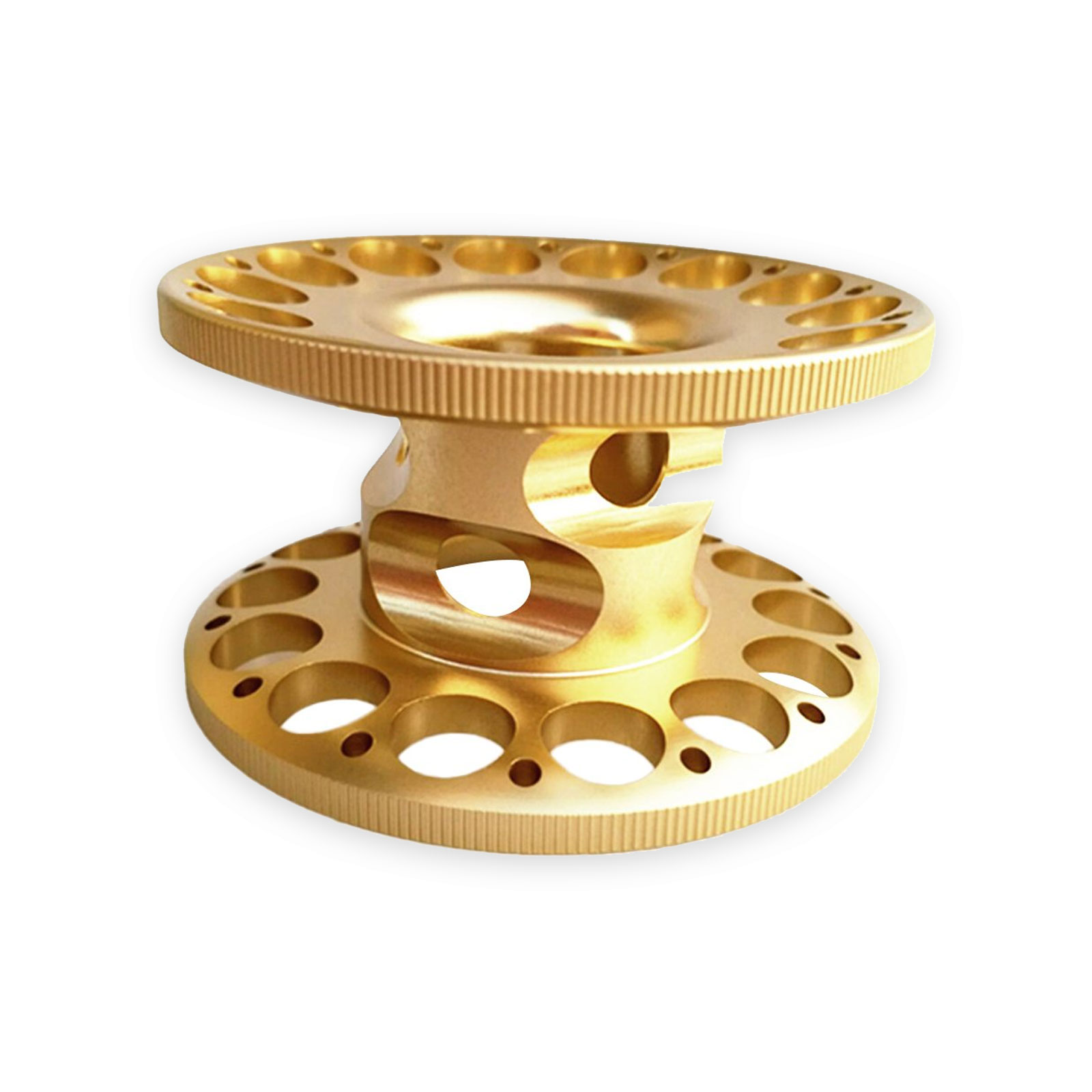

Comparison Of Common Brass Grades

Brass Grades

Hardness Rockwell 30T

Tensile Strength, Ultimate

Tensile Strength, Yield

Elongation at Break

Tensile Modulus

Copper cotent

Common application

C360

78

359 Mpa

145 Mpa

53%

97 Gpa

60 - 63%

Fluid Connectors Sensor Bodies

C280

52

345 Mpa

140 Mpa

20%

117 Gpa

59-63%

barometer bullets, screens, radiators

C270

43

365 MPa

150 MPa

54%

105 GPa

63- 68.5 %

Mechanical parts

C260

15

315 Mpa

95 Mpa

65%

110 Gpa

68.5 -71.5 %

Radiator shell, conduit, cartridge

C240

64

N/A

170

12%

110 GPa

78.50-81.50 %

Pipe material

C230

74

580 Mpa

435 Mpa

3%

115 Gpa

84- 86 %

Cooling equipment

C210

57-62

345 - 407 Mpa

338 - 400 Mpa

2- 8%

117 Gpa

95%

Conductive part

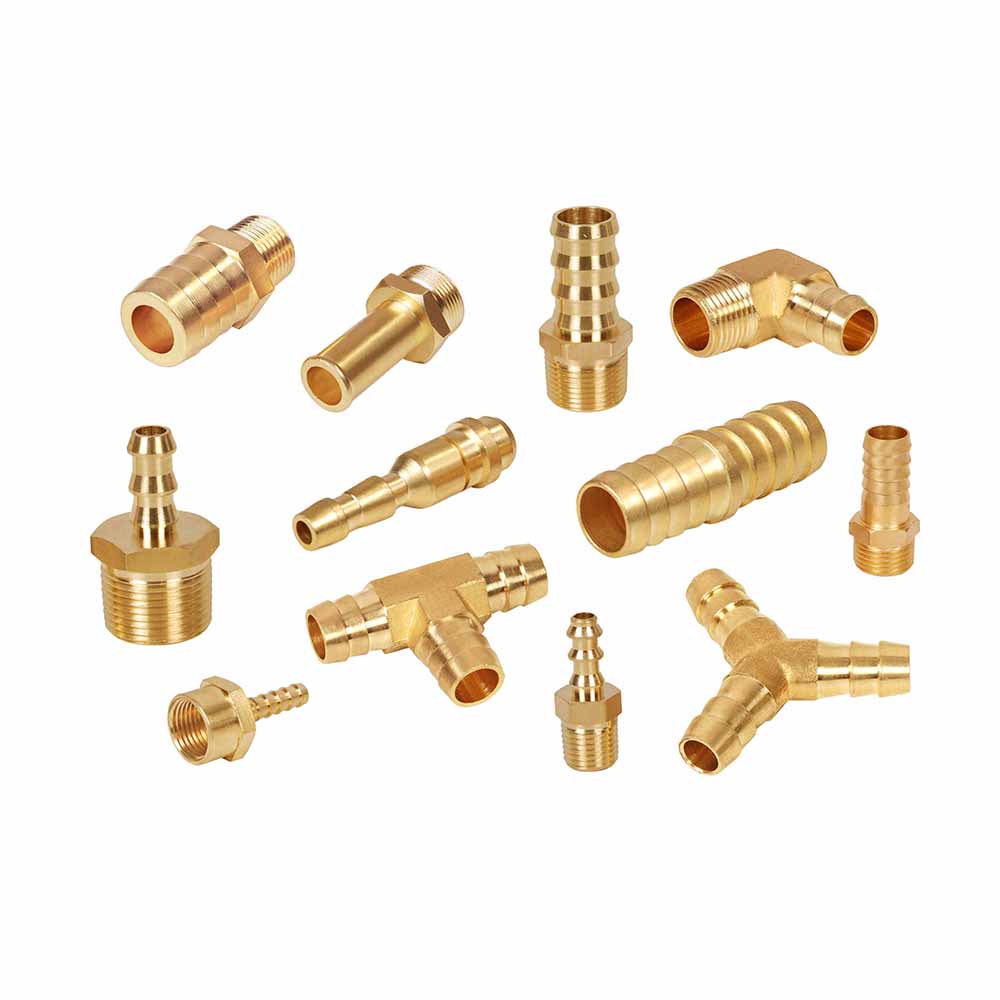

Brass

Comparison Of Common Steel Grades

Steel Grade

Hardness Rockwell 30T

Ultimate Tensile Strength (MPa)

Tensile Strength, Yield

Elongation at Break

Tensile Modulus

Features

Common Applications

Steel 1018

71 HRB

440 MPa

370 MPa

15%

200 GPa

Low carbon, good machinability

Machinery parts, shafts

Steel 1045

81-85 HRB

565 MPa

310 MPa

14%

210 GPa

Medium carbon, high strength

Gears, shafts, bolts

Steel 4130

85-95 HRB

669 MPa

434 MPa

20-25%

200 GPa

High strength, weldability

Aircraft components, automotive

Steel 4140

94-98 HRB

655 MPa

483 MPa

20-25%

207 GPa

High strength, toughness

Axles, shafts, gears

Steel A36

71-78 HRB

400-550 MPa

250 MPa

20%

200 GPa

General construction, bridges

Structural steel

Steel 1215

71-78 HRB

538 MPa

414 MPa

10%

207 GPa

Free machining, good surface finish

Fasteners, bushings

Steel 4340

94-98 HRB

1586 MPa

965 MPa

10-25%

207 GPa

High strength, toughness

Aircraft components, automotive

A2 Tool Steel

63-65 HRC

1930-2010 MPa

1650-1700 MPa

6-9%

190-210 GPa

High wear resistance, toughness

Cutting tools, dies

D2 Tool Steel

58-62 HRC

1950-2150 MPa

1700-1900 MPa

4-8%

190-210 GPa

High wear resistance, toughness

Cutting tools, punches

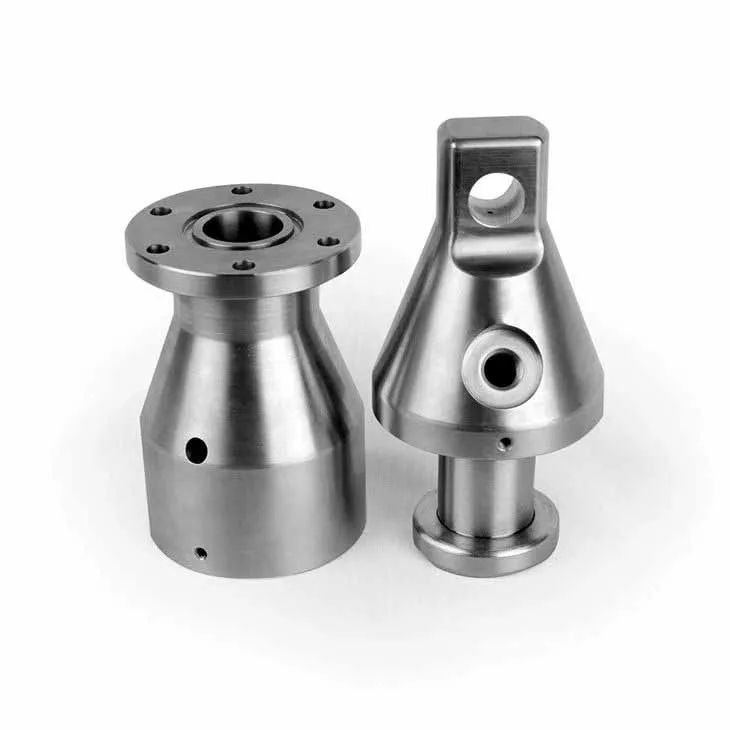

Steel

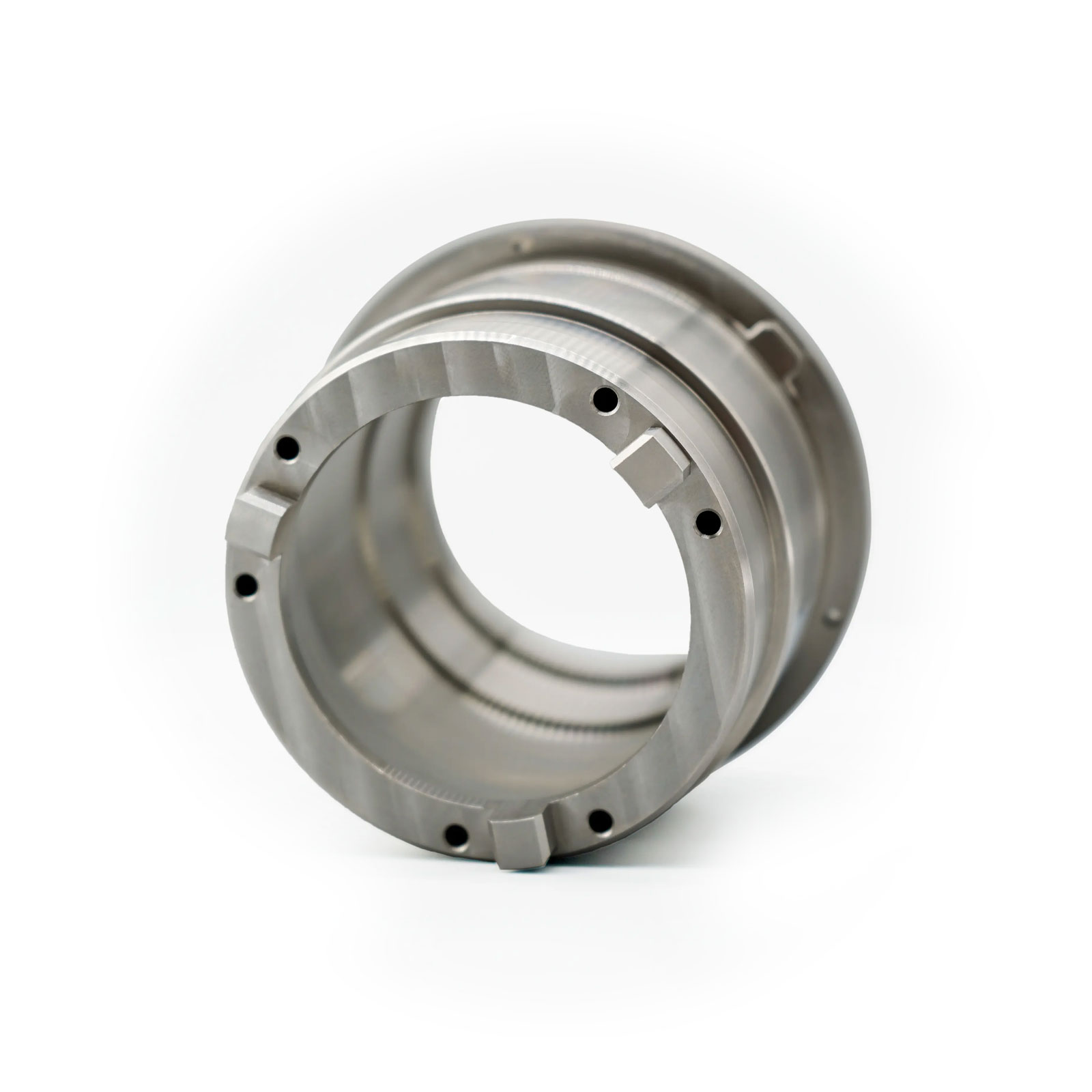

Comparison Of Common Stainless Steel Grades

Stainless Steel Grade

Ultimate Tensile Strength (MPa)

Elongation at Break (%)

Hardness (Brinell)

Features

Common Applications

304 (UNS S30400)

515-620

55-60

150-180

Corrosion resistance, formability

Food processing, kitchen appliances

304L (UNS S30403)

485 min

40 min

149 max

Improved weldability

Food processing, architectural

316 (UNS S31600)

515-690

55-60

150-190

Enhanced corrosion resistance

Marine, chemical processing

316L (UNS S31603)

485 min

40 min

149 max

Improved weldability

Pharmaceutical, chemical processing

430 (UNS S43000)

450-600

22-30

150-290

Good corrosion resistance

Automotive, appliances

410 (UNS S41000)

480-760

20-30

170-255

Hardness, moderate corrosion resistance

Cutlery, surgical instruments

416 (UNS S41600)

550-690

15-20

262-352

Free machining, corrosion resistance

Bolts, nuts, shafts

420 (UNS S42000)

655-950

12-18

290-490

High hardness, good corrosion resistance

Surgical instruments, molds

440C (UNS S44004)

760-1035

10-18

248-269

High hardness, wear resistance

Ball bearings, knives

Stainless Steel

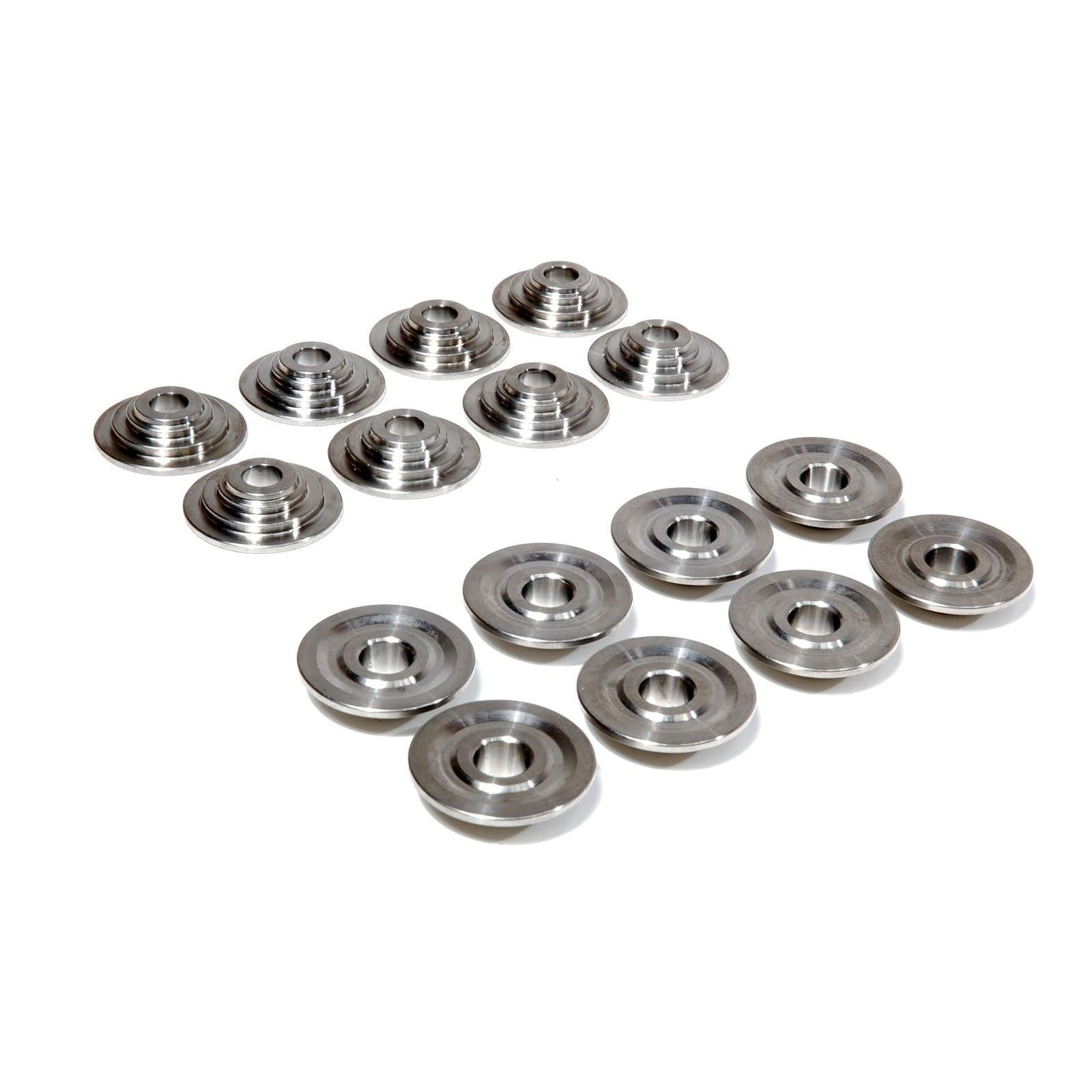

Comparison Of Common Titanimu Grades

Titanium Grade

Ultimate Tensile Strength (MPa)

Yield Strength (MPa)

Elongation at Break (%)

Hardness (Rockwell C)

Tensile Modulus

Features

Common Applications

Grade 1

240-410

170

24-30

14-25

105 GPa

High Corrosion Resistance

Chemical processing, marine

Grade 2

345-550

275

20-25

30-35

105 GPa

Excellent Strength-to-Weight Ratio

Aerospace, medical implants

Grade 5

895-950

830

10-15

36-38

114 GPa

High Strength

Aerospace, automotive

Grade 9

620-828

483

15-20

28-36

118 GPa

Excellent Balance of Strength, Toughness, and Workability

Aerospace, chemical processing

Grade 23

860-1100

795

10-15

38-41

114 GPa

Biocompatible, high strength

Medical implants, marine

Titanium Alloy

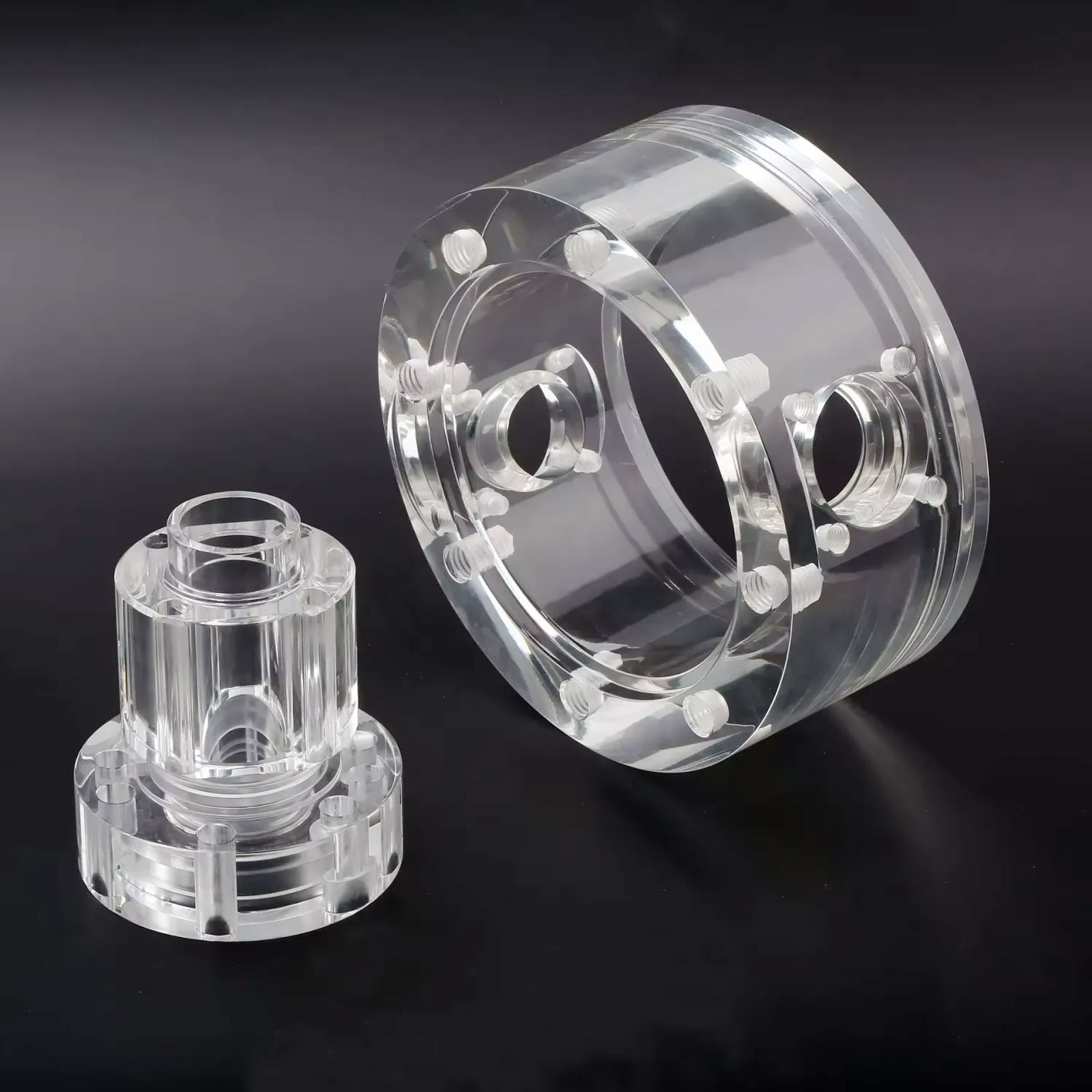

Comparison Of Common Plastics

Plastics

Density (g/cm³)

Hardness (Shore D)

Yield Strength (MPa)

Elongation at Break (%)

Softening Temp. (°C)

Friction Coefficient

Features

Common Application

POM

1.41 - 1.43

80 - 87

63 - 70

10 - 50

175 - 195

0.2 - 0.4

High stiffness, low friction

Gears, bearings

ABS

1.05 - 1.07

70 - 115

40 - 60

3 - 50

90 - 110

0.35

Impact resistance, toughness

Automotive trim

Acrylic
(PMMA)

1.17 - 1.20

85 - 105

70 - 80

2-10

95 - 120

0.35

Optical clarity, scratch resistance

Signage, lenses

HDPE

0.95 - 0.97

60 - 70

-

-

75 - 90

-

High chemical resistance

Bottles, pipes

PTFE

2.12 - 2.20

55 - 65

20 - 30

200 - 400

327

0.04 - 0.10

Low friction, high temperature resistance

Seals, gaskets

Plastic
